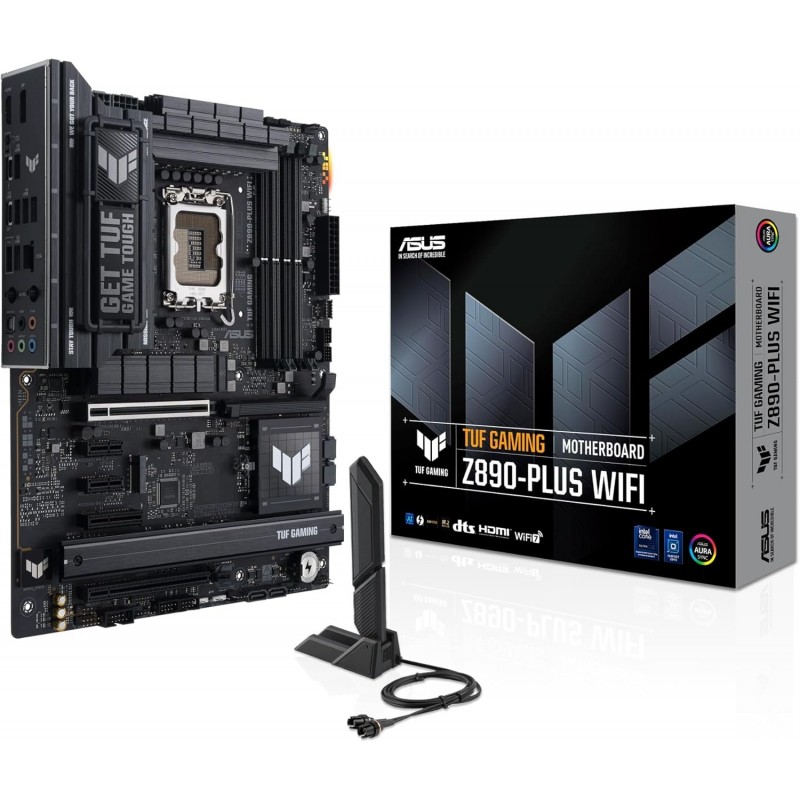

Asus 1851 TUF Gaming Z890-Plus WIFI ATX DDR5

90MB1IQ0-M0EAY0

Scheda madre ATX Socket 1851 Intel Z890 Express - 4x DDR5 - M.2 PCIe 5.0 - Thunderbolt 4 - PCI-Express 5.0 16x - LAN 2.5 GbE - Wi-Fi 7/Bluetooth 5.4

265,00 €
Tasse incluse
Quantità
Prenotabile



Download PDF
Descrizione

ASUS TUF Gaming Z890-Plus WiFi è una scheda madre solida e versatile, progettata per i processori Intel di 14a generazione con socket LGA 1851 e basata sul chipset Intel Z890. Supporta memorie DDR5 con frequenze fino a 7200+ MT/s (OC) tramite profili XMP, offrendo un equilibrio ideale tra prestazioni e stabilità. Il formato ATX consente l'installazione in case standard, con due slot PCIe 5.0 x16 per configurazioni grafiche di ultima generazione. La TUF Gaming Z890-Plus WiFi include Wi-Fi 7 per connessioni wireless veloci e affidabili, oltre a una porta Intel® 2.5Gb Ethernet per connessioni cablate di alta qualità.

La scheda offre diverse opzioni di archiviazione, con tre slot M.2 compatibili con PCIe 5.0 x4, che garantiscono una velocità di accesso eccezionale per gli SSD NVMe. Inoltre, sono presenti quattro porte SATA 6Gbps per dispositivi di archiviazione tradizionali. Il pannello I/O posteriore è dotato di USB4 (40Gbps), numerose porte USB 10Gbps, e un’uscita HDMI 2.1, ideale per display ad alta risoluzione. L'audio è gestito dal TUF Gaming 7.1 Surround Sound High Definition Audio CODEC ALC4080, offrendo un'esperienza sonora immersiva per gaming e intrattenimento.

Il raffreddamento è ottimizzato con dissipatori dedicati e connettori per ventole e sistemi di raffreddamento a liquido, garantendo temperature sotto controllo anche durante i carichi di lavoro più intensi. Il BIOS intuitivo di ASUS permette di regolare le impostazioni per ottenere un overclock stabile e prestazioni superiori, rendendo la TUF Gaming Z890-Plus WiFi ideale per chi cerca una piattaforma robusta e versatile per gaming e produttività.

Dati Tecnici:

  • Formato: ATX (305 x 244 mm)
  • Chipset: Intel Z890
    Socket: LGA 1851
  • RAM:
    4x DDR5
    7200+ MT/s (OC) con XMP
    ECC & Non-ECC Un-buffered DIMM
    Max. 192 GB
  • Uscite Video:
    1 x HDMI 2.1
    2 x USB4® (40Gbps) con supporto DisplayPort
  • Slot Espansione:
    2 x PCIe 5.0 x16 slots (x16 o x8/x8)
    1 x PCIe 4.0 x4 slot
  • Storage:
    4x SATA 6G
    M.2_1 slot (Key M), type 2242/2260/2280 (PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280 (PCIe 5.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280 (PCIe 4.0 x4 mode)
  • Ethernet:
    1x Intel® 2.5Gb Ethernet
  • Wireless & Bluetooth:
    Wi-Fi 7 (802.11be)
    Bluetooth 5.4
  • USB:
    Posteriori:
    2 x USB4 (40Gbps) ports (2 x USB Type-C)
    8 x USB 10Gbps ports (6 x Type-A + 2 x Type-C)
    Frontali:
    2 x USB 20Gbps Type-C
    2x USB 5Gbps headers (supportano 4 porte USB 5Gbps)
    2x USB 2.0 headers (supportano 4 porte USB 2.0)
  • Audio:
    TUF Gaming 7.1 Surround Sound High Definition Audio CODEC ALC4080
    DTS® Custom
  • Connettori Back Panel I/O:
    2 x USB4® (40Gbps) ports (2 x USB Type-C®)
    8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C®)
    1 x HDMI™ port
    1 x Intel® 2.5Gb Ethernet port
    2 x Gold-plated audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack™ button
    1 x Clear CMOS button
  • Connettori Interni:
    Fan and Cooling:
    1 x 4-pin CPU Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power:
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connector
    Storage:
    3 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB:
    2 x USB 20Gbps connectors (supporto USB Type-C®)
    2 x USB 5Gbps headers (supportano 4 porte USB 5Gbps)
    2 x USB 2.0 headers (supportano 4 porte USB 2.0)
    Varie:
    3 x Addressable Gen2 headers
    1 x FlexKey button
    1 x Front Panel Audio header (F_AUDIO)
    1 x Start button
    1 x 10-1 pin System Panel header
    1 x Thermal Sensor header

Link produttore



Dettagli del prodotto
90MB1IQ0-M0EAY0
